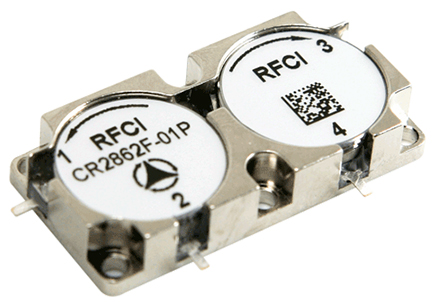

With two or more junctions being combined, RFCI Drop-in Multiport “High Ratio” configuration Circulators are designed to provide additional isolation where needed. Parts are available in most frequency ranges.
Typical Specifications (2 Junctions)
Isolation: P2 to P1 >40dB P3 to P2 >20dB
Insertion Loss: P1 to P2
VSWR (all Ports): 1.25:1 Max.
S-Parameters to be measured by connecting Port 1 and Port 2 to VNA and Port 3 and Port 4 to Load with load return loss 30dB or higher
- Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction
- Special Tab is offset available
- S-parameters are available upon request
2 Ports F Configuration Brochure (pdf Download)
3 Ports H Configuration Brochure (pdf Download)
For our Part number listing or order, please contact: RFCI Sales: sales@rf-ci.com
For technical support, please contact: RFCI Support: support@rf-ci.com
RF Circulator Isolator, Inc.www.rf-ci.com
1394 Tully Rd, Suite# 210, San Jose, CA 95122
Tel: +1 408 977 1526 Fax: +1 408 977 1534
- Available in most frequency ranges
- Robust Construction for High Reliability performance
- RoHS compliant
- Low typical Insertion loss
- Magnetically Shielded
