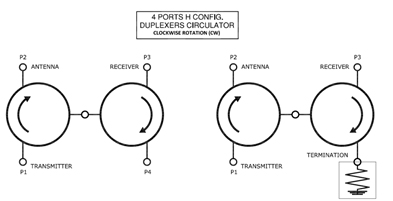

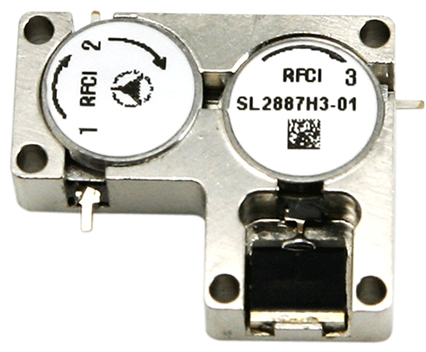

RFCI Drop-in Multiport “H” configuration Circulators are designed for Systems that use 4 Ports Circulator as duplexers, permitting both transmitter and receiver to share a common antenna. The transmit signal path is Port 1 to Port 2. The receiver signal path is Port 2 to Port 3. Mismatched signals that occur at port 3 are routed at Port 4 (to the termination). Parts are available in most frequency ranges

Typical Specifications (2 Junctions)

Isolation: P2 to P1 >20dB P3 to P2 >40dB

Insertion Loss: P1 to P2

VSWR (all Ports): 1.25:1 Max.

S-Parameters to be measured by connecting Port 1 and Port 2 to VNA and Port 3 and Port 4 to Load with load return loss 30dB or higher.

• Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction
• Special Tab is offset available
• S-parameters are available upon request
