RFCI SMD Isolators are designed to meet the demands of commercial communication systems for applications in high performance linear power amplifiers. Feature a robust construction for reliability performance at low cost with high reverse power handling capability, these designs package are ideally suited for high volume manufacturing.

Applications:

Communication system
Wireless infrastructure
S-Bands

Product Image

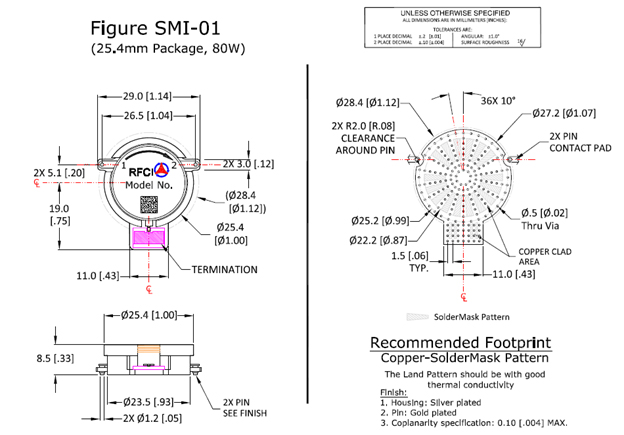

80W SMD Isolators, Pin Style (25.4mm Package Size)

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power P/CW	Rev Power	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)
RFSL5104	728	768	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5108	773	803	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5110	791	821	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5207	830	890	0.35/0.40	21/19	21/19	500/100	80	-40 to +85°C	SMI-01
RFSL5209	860	890	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5202	869	894	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5306	902	928	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5301	920	960	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5303	1020	1090	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5309	1165	1215	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5311	1200	1400	0.25/0.35	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5313	1420	1520	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5402	1520	1665	0.25/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5404	1625	1680	0.25/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5406	1710	1785	0.25/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5501	1805	1880	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5505	1880	1930	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5601	1930	1995	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5701	2090	2190	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01
RFSL5705	2130	2280	0.22/0.30	23/20	23/20	500/100	80	-40 to +85°C	SMI-01

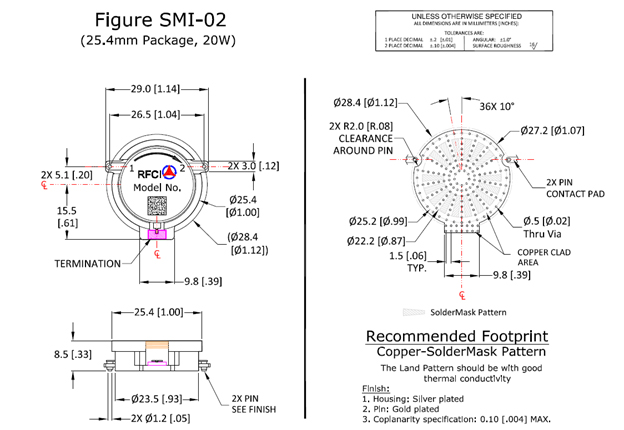

20W SMD Isolators, Pin Style (25.4mm Package Size)

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power P/CW	Rev Power	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)
RFSL5105	728	768	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5109	773	803	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5111	791	821	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5208	830	890	0.35/0.40	21/19	21/19	500/100	20	-40 to +85°C	SMI-02
RFSL5205	860	890	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5203	869	894	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5307	902	928	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5308	920	960	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5304	1020	1090	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5310	1165	1215	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5312	1200	1400	0.25/0.35	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5314	1420	1520	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5403	1520	1665	0.25/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5405	1625	1680	0.25/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5407	1710	1785	0.25/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5502	1805	1880	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5506	1880	1930	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5602	1930	1995	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5702	2090	2190	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02
RFSL5706	2130	2280	0.22/0.30	23/20	23/20	500/100	20	-40 to +85°C	SMI-02

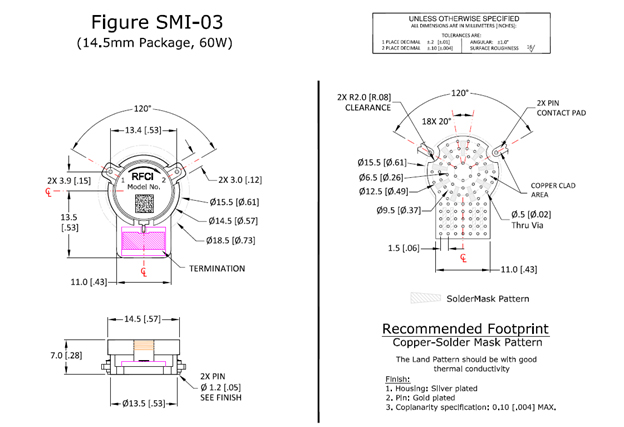

60W SMD Isolators, Pin Style (14.5mm Package Size)

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power P/CW	Rev Power	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)
RFSL5409	1625	1680	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5410	1710	1785	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5508	1805	1880	0.22/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5509	1880	1930	0.22/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5603	1930	1995	0.22/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5703	2110	2170	0.22/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5708	2130	2280	0.25/0.35	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5815	2200	2400	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5816	2320	2370	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5817	2365	2435	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5818	2400	2500	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5819	2550	2650	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5801	2620	2690	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5820	2700	2900	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5821	2900	3100	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5822	3100	3300	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03
RFSL5823	3200	3400	0.25/0.30	23/20	23/20	500/80	60	-40 to +85°C	SMI-03

20W SMD Isolators, Pin Style (14.5mm Package Size)

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power P/CW	Rev Power	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)
RFSL5504	1805	1880	0.22/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5507	1880	1930	0.22/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5604	1930	1995	0.22/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5704	2110	2170	0.22/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5707	2130	2280	0.25/0.35	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5805	2200	2400	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5807	2320	2370	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5808	2365	2435	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5809	2400	2500	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5810	2550	2650	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5802	2620	2690	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5811	2700	2900	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5812	2900	3100	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5813	3100	3300	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04
RFSL5814	3200	3400	0.25/0.30	23/20	23/20	500/80	20	-40 to +85°C	SMI-04

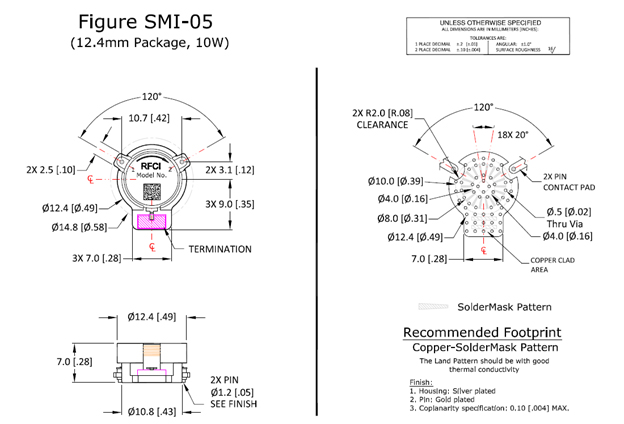

10W SMD Isolators, Pin Style (12.4mm Package Size)

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power P/CW	Rev Power	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)
RFSL5824	2320	2370	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5825	2365	2435	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5826	2400	2500	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5827	2550	2650	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5828	2620	2690	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5829	2700	2900	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5830	2900	3100	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5831	3100	3300	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05
RFSL5832	3200	3400	0.25/0.30	22/20	22/20	500/50	10	-40 to +85°C	SMI-05

Standard Part Number is Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation

Key Feature:

Broad selection of Frequency
Industry standard and Miniature size
Robust package and connection lead Construction for High Reliability
Excellent IMD, High Power Handling
Low Insertion loss, High Isolation and Return loss
Wide Operation Temperature Range
RoHS compliant
Magnetically Shielded
Designed to function after exposure to the shock, vibration, thermal shock and moisture conditions
Matrix Bar Code for part identify
Ship on tape and reel on high volume Order

Thick Image

Function Diagram

Fuction Diagram

Standard Part Number is Clockwise (CW) Rotation

Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction.
Custom Design Available Upon Request
S-parameters are available upon request.
Evaluation Board (EVB) is available upon request
