RF Circulator Isolator, Inc. – Flange Mount Drop-In Circulator 200MHz TO 3000MHz

Home»Circulators»Drop-in Circulators»Flange Mount Drop-In Circulator 200MH_z TO 3000MH_z

RFCI Drop-in Flange Mount Circulators utilize the latest technology in miniaturization to assure a fit into the most compact assemblies.

RFCI has developed a series of Drop-in Flange Mount Circulators for applications in high performance linear power amplifiers. These devices are specifically designed to be mounted with standard hardware within your chassis. Their connection Tabs are suitable for soldering to the mating circuit boards.

Applications:

UHF, TETRA, Communication system
Wireless infrastructure
L-Bands and S-Bands Radar

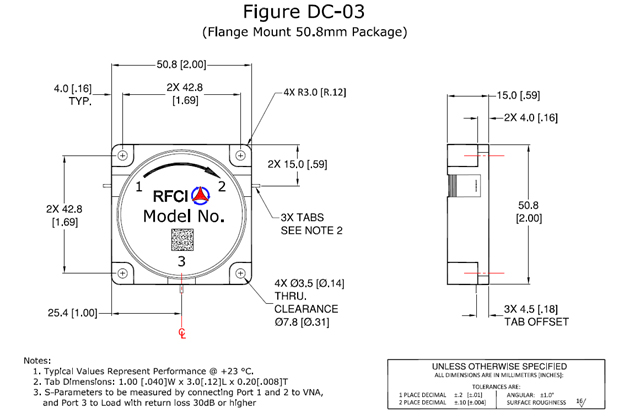

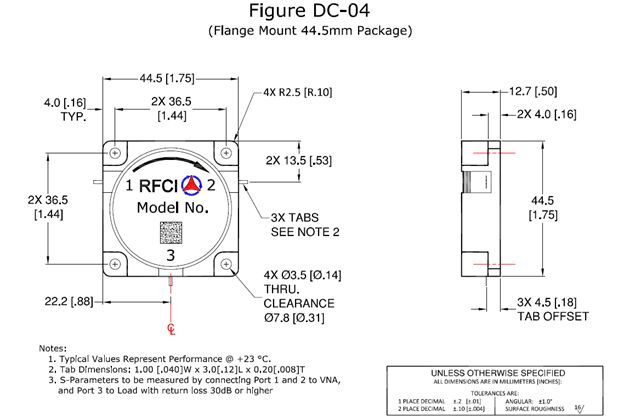

Flange Mount Drop-in Circulators (50.8mm and 44.5mm Package Size)

Part Number	Frequency Range		Insertion Loss (dB)	Isolation (dB)	Return Loss (dB)	Forward Power p CW (W)	Rev Power CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)	Figure
RFCR2158	205	230	0.50/0.70	21/18	21/18	1000/200	200	-20 to +85°C	DC-03
RFCR2159	220	280	0.50/0.70	19/17	19/17	1000/200	200	-20 to +85°C	DC-03
RFCR2160	270	335	0.50/0.70	21/18	21/18	1000/200	200	-20 to +85°C	DC-03
RFCR2146	285	325	0.40/0.50	21/19	21/19	1000/200	200	-20 to +85°C	DC-04
RFCR2147	290	320	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-04
RFCR2157	325	400	0.40/0.50	21/18	21/18	1000/200	200	-20 to +85°C	DC-04
RFCR2161	325	360	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-04
RFCR2162	340	400	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-04
RFCR2163	350	410	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-04
RFCR2164	380	460	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-04

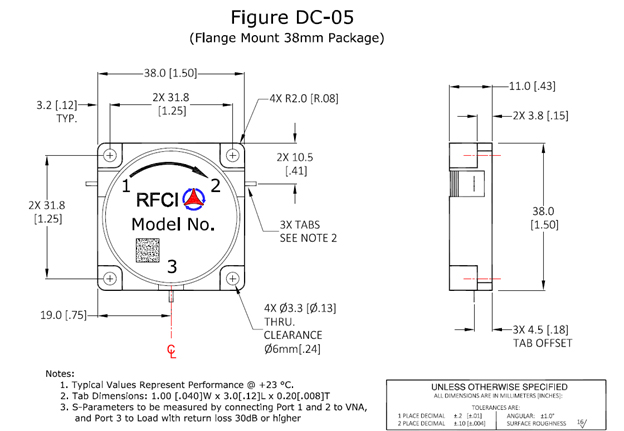

Flange Mount Drop-in Circulators (38mm Package Size)

Part Number	Frequency Range		Insertion Loss (dB)	Isolation (dB)	Return Loss (dB)	Forward Power p CW (W)	Rev Power CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)	Figure
RFCR2154	330	360	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2119	350	380	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2120	360	390	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2121	380	430	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2148	400	470	0.35/0.50	20/18	20/18	1000/200	200	-20 to +85°C	DC-05
RFCR2122	400	450	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2156	415	475	0.40/0.50	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2123	415	455	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2124	430	460	0.25/0.30	25/22	25/22	1000/200	200	-20 to +85°C	DC-05
RFCR2125	450	500	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2150	470	570	0.35/0.50	20/18	20/18	1000/300	300	-20 to +85°C	DC-05
RFCR2117	470	520	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2126	520	576	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2151	570	670	0.35/0.50	20/18	20/18	1000/300	300	-20 to +85°C	DC-05
RFCR2127	576	638	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2128	638	704	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2152	670	770	0.30/0.40	22/20	22/20	1000/300	300	-20 to +85°C	DC-05
RFCR2129	698	806	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2229	700	1000	0.50/0.60	17/16.5	17/16.5	1000/200	200	-20 to +85°C	DC-05
RFCR2130	700	830	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2153	770	870	0.30/0.40	22/20	22/20	1000/300	300	-20 to +85°C	DC-05
RFCR2131	800	960	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-05
RFCR2345	940	1200	0.40/0.50	20/18	20/18	1000/200	200	-40 to +85°C	DC-05
RFCR2344	950	1250	0.540/0.60	17/16.5	17/16.5	1000/200	200	-40 to +85°C	DC-05
RFCR2321	960	1260	0.540/0.60	17/16.5	17/16.5	1000/200	200	-20 to +85°C	DC-05

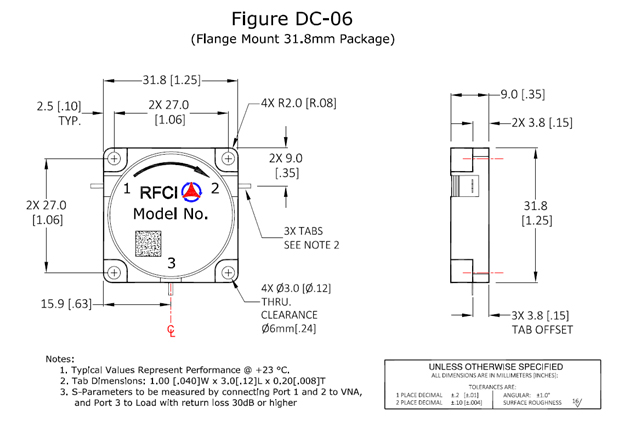

Flange Mount Drop-in Circulators (31.8mm Package Size)

Part Number	Frequency Range		Insertion Loss (dB)	Isolation (dB)	Return Loss (dB)	Forward Power p CW (W)	Rev Power CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)	Figure
RFCR2132	638	704	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-06
RFCR2133	698	804	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-06
RFCR2134	700	830	0.30/0.40	22/20	22/20	1000/200	200	-20 to +85°C	DC-06
RFCR2138	790	960	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-06
RFCR2217	850	1000	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-06
RFCR2218	860	960	0.20/0.30	22/20	22/20	1000/200	200	-40 to +85°C	DC-06
RFCR2337	1000	1400	0.40/0.60	19/17	19/17	1000/200	200	-20 to +85°C	DC-06
RFCR2323	1000	1200	0.30/0.40	23/20	23/20	1000/200	200	-40 to +85°C	DC-06
RFCR2324	1100	1300	0.40/0.60	23/20	23/20	1000/200	200	-40 to +85°C	DC-06
RFCR2325	1160	1220	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-06
RFCR2326	1200	1400	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-06
RFCR2327	1200	1420	0.30/0.40	23/20	23/20	1000/200	200	-40 to +85°C	DC-06
RFCR2415	1300	1700	0.40/0.50	19/17	19/17	1000/200	200	-20 to +85°C	DC-06
RFCR2417	1350	1850	0.50/0.60	17/16.5	17/16.5	1000/200	200	-20 to +85°C	DC-06
RFCR2328	1400	1600	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-06
RFCR2402	1500	1800	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-06
RFCR2509	1700	2100	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-06
RFCR2404	1700	1900	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-06
RFCR2410	1800	2200	0.20/0.30	23/20	23/20	1000/200	200	-40 to +85°C	DC-06

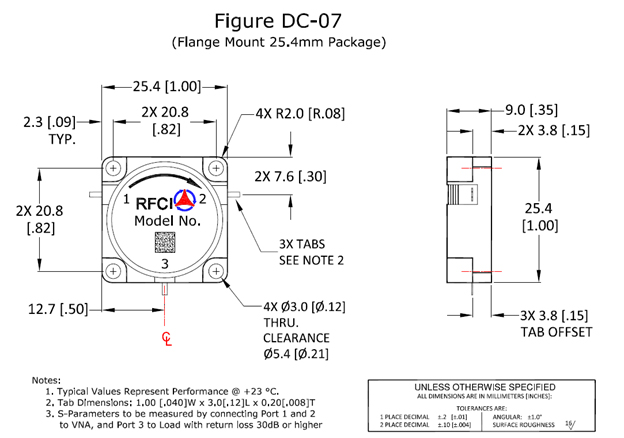

Flange Mount Drop-in Circulators (25.4mm Package Size)

Part Number	Frequency Range		Insertion Loss (dB)	Isolation (dB)	Return Loss (dB)	Forward Power p CW (W)	Rev Power CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)	Figure
RFCR2145	790	1000	0.40/0.50	20/17	20/17	1000/200	200	-40 to +85°C	DC-07
RFCR2141	790	960	0.35/0.45	20/18	20/18	1000/200	200	-40 to +85°C	DC-07
RFCR2228	810	915	0.30/0.35	21/20	21/20	1000/200	200	-40 to +85°C	DC-07
RFCR2338	960	1215	0.40/0.50	20/17	20/17	1000/200	200	-40 to +85°C	DC-07
RFCR2331	1020	1090	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2334	1100	1300	0.25/0.35	23/20	23/20	1000/200	200	-40 to +85°C	DC-07
RFCR2332	1165	1215	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2318	1200	1400	0.25/0.35	23/20	23/20	1000/200	200	-40 to +85°C	DC-07
RFCR2335	1270	1400	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2418	1300	1700	0.40/0.50	19/17	19/17	1000/200	200	-40 to +85°C	DC-07
RFCR2336	1400	1600	0.25/0.35	23/20	23/20	1000/200	200	-40 to +85°C	DC-07
RFCR2333	1420	1520	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2407	1500	1800	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-07
RFCR2408	1520	1665	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2405	1600	1650	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2409	1700	2100	0.30/0.40	22/20	22/20	1000/200	200	-40 to +85°C	DC-07
RFCR2512	1800	2200	0.30/0.35	22/20	22/20	1000/200	200	-40 to +85°C	DC-07
RFCR2511	1805	1880	0.20/0.30	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2614	1900	2200	0.30/0.35	22/20	22/20	1000/200	200	-40 to +85°C	DC-07
RFCR2731	1980	2520	0.35/0.40	20/18	20/18	1000/200	200	-40 to +85°C	DC-07
RFCR2736	1980	2620	0.30/0.50	20/16	20/16	1000/200	200	-40 to +85°C	DC-07
RFCR2732	2000	2300	0.25/0.35	23/20	23/20	1000/200	200	-40 to +85°C	DC-07
RFCR2729	2000	2200	0.25/0.35	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2721	2010	2300	0.30/0.35	25/22	25/22	1000/200	200	-40 to +85°C	DC-07
RFCR2846	2300	2680	0.25/0.35	25/22	25/22	1000/200	200	-40 to +85°C	DC-07

Standard Part Number is Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation

Key Feature:

Broad Selection of frequency and Bandwidth
Low typical Insertion loss, High Typical Isolation
Wide Operation Temperature Range
High Power Handling
Industry-standard and Miniature package size
Robust Construction for High Reliability performance
RoHS compliant
Magnetically Shielded

Thick Image

Function Diagram

Fuction Diagram

Standard Part Number is Clockwise (CW) Rotation

S-Parameters to be measured by connecting Port 1 and Port 2 to VNA and Port 3 to Load with load return loss 30dB or higher

Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction.
Special Tab is offset available.
Custom Design Available Upon Request
S-parameters are available upon request.

Fuction Diagram
