RF Circulator Isolator, Inc. – Coaxial Circulators Broad Band SMA Connector

Home»Circulators»Coaxial»Coaxial Circulators Broad Band SMA Connector

RFCI SMA Connector Broad Bandwidth Circulators utilize the latest technology in miniaturization to assure a fit into the most compact assemblies. RFCI has specifically designed and developed a series of Coaxial Broad Bandwidth Circulators for Broad band Amplifiers.

Applications:

Communication system
Wireless infrastructure
Radar Bands

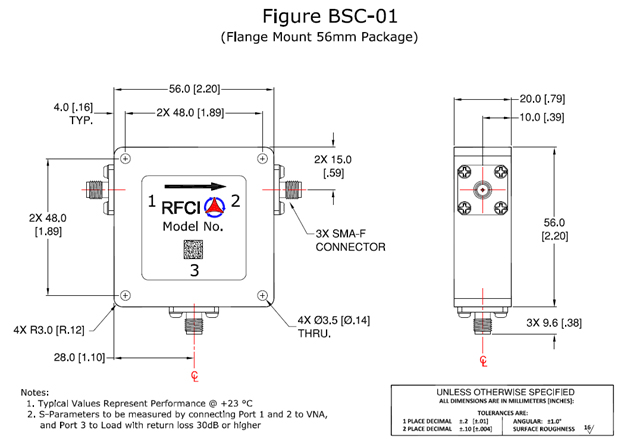

Part Number	FrequeBCy Range		Insertion Loss (dB)	Isolation (dB)	Return Loss (dB)	Forward Power CW (W)	Rev Power CW (W)	Operating Temperature	Mechanical Package
	Low	High	Room/OT	Room/OT	Room/OT	Max.	Max.	(ºC)	Figure
RFCR8457	800	2000	0.60/0.85	16/14.5	16/14.5	500/50	50	-0 to +50°C	BNC-01
RFCR8461	800	1400	0.50/0.60	16/15	16/15	500/50	50	-0 to +50°C	BNC-01
RFCR8460	900	1500	0.40/0.60	20/19	20/19	500/50	50	-0 to +50°C	BNC-01
RFCR8455	1000	2000	0.50/0.70	19/17	19/17	500/50	50	-0 to +50°C	BNC-01
RFCR8451	1250	2500	0.50/0.70	19/17	19/17	500/50	50	-0 to +50°C	BNC-01
RFCR8552	1300	2600	0.50/0.70	19/17	19/17	500/50	50	-0 to +50°C	BNC-01
RFCR8553	1350	2700	0.50/0.70	19/17	19/17	500/50	50	-10 to +50°C	BNC-01
RFCR8753	1500	3000	0.50/0.70	19/17	19/17	500/50	30	-10 to +50°C	BNC-02
RFCR8754	1600	3200	0.50/0.70	19/17	19/17	500/50	30	-10 to +50°C	BNC-02
RFCR8756	1500	4000	0.80/1.0	15/14	15/14	500/50	30	-10 to +50°C	BNC-02
RFCR8755	1700	4200	0.50/0.70	16/15	16/15	500/50	30	-10 to +50°C	BNC-02
RFCR8951	2000	6000	1.0/1.40	13/12.5	13/12.5	500/50	30	-20 to +50°C	BNC-02
RFCR8851	2000	4000	0.50/0.70	19/17	19/17	500/50	30	-20 to +50°C	BNC-02
RFCR8860	2000	3000	0.40/0.50	21/20	21/20	500/50	30	-40 to +50°C	BNC-02
RFCR8855	2100	4200	0.50/0.70	19/17	19/17	500/50	30	-20 to +50°C	BNC-02
RFCR8992	2300	6000	0.70/0.80	15/14	15/14	500/50	30	-20 to +50°C	BNC-02
RFCR8859	2500	6200	0.80/1.00	14/13	14/13	500/50	30	-20 to +50°C	BNC-02
RFCR8858	2500	5500	0.60/0.80	16/15	16/15	500/50	30	-20 to +50°C	BNC-02
RFCR8856	2500	5000	0.50/0.70	19/17	19/17	500/50	30	-20 to +50°C	BNC-02
RFCR8857	2600	5200	0.50/0.70	19/17	19/17	500/50	30	-20 to +50°C	BNC-02
RFCR8991	2700	6200	0.60/0.80	16/15	16/15	500/50	30	-20 to +50°C	BNC-02

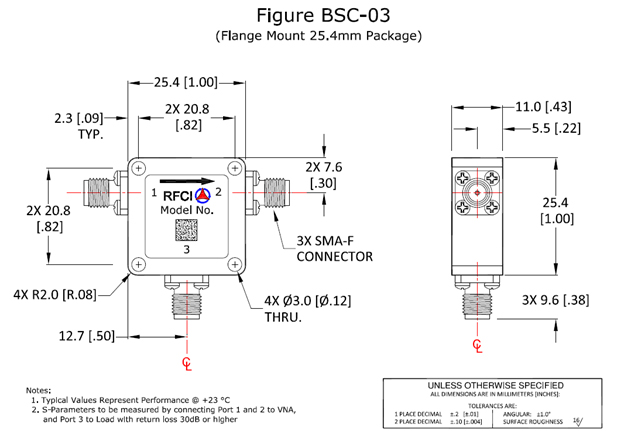

RFCR8952	3000	6000	0.50/0.70	19/18	19/18	500/50	30	-20 to +85°C	BSC-03
RFCR8962	3200	6400	0.50/0.60	19/18	19/18	500/50	30	-20 to +85°C	BSC-03
RFCR8957	3500	7000	0.50/0.60	19/18	19/18	500/50	30	-20 to +85°C	BSC-03
RFCR8964	3600	8600	0.60/0.70	17/16	17/16	500/50	30	-20 to +85°C	BSC-03
RFCR8967	4000	10000	0.60/0.70	16/15	16/15	250/30	20	-20 to +85°C	BSC-04
RFCR8966	4000	9000	0.50/0.60	17/16	17/16	250/30	20	-20 to +85°C	BSC-04
RFCR8955	4000	8000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8968	4500	9000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8969	4700	9700	0.50/0.60	17/16	17/16	250/30	20	-40 to +85°C	BSC-04
RFCR8970	5000	10000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8971	5200	10400	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8972	5300	12700	0.70/0.80	16/15	16/15	250/30	20	-20 to +85°C	BSC-04
RFCR8973	5500	11000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8974	6000	12000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8976	6500	16500	0.80/1.00	14/13	14/13	250/30	20	-40 to +85°C	BSC-04
RFCR8975	6500	13000	0.50/0.60	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8979	7000	17000	0.90/1.00	14/13	14/13	250/30	20	-40 to +85°C	BSC-04
RFCR8978	7000	14000	0.60/0.70	19/17	19/17	250/30	20	-40 to +85°C	BSC-04
RFCR8977	7000	12400	0.50/0.60	20/19	20/19	250/30	20	-40 to +85°C	BSC-04
RFCR8981	7500	16000	0.70/0.80	16/15	16/15	250/30	20	-40 to +85°C	BSC-04
RFCR8980	7500	15000	0.60/0.70	19/17	19/17	250/30	20	-40 to +85°C	BSC-04

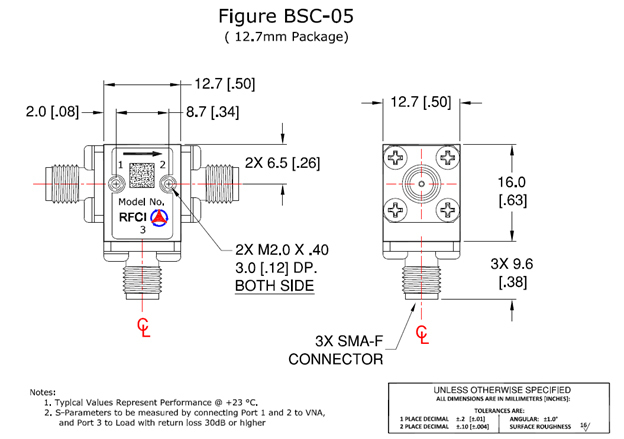

RFCR8982	8000	16000	0.60/0.70	19/17	19/17	250/20	10	-40 to +85°C	BSC-05
RFCR8983	8000	12400	0.50/0.60	21/20	21/20	250/20	10	-40 to +85°C	BSC-05
RFCR8984	8000	18000	0.80/0.90	16/15	16/15	250/20	10	-40 to +85°C	BSC-05
RFCR8985	8500	18500	0.80/0.90	16/15	16/15	250/20	10	-40 to +85°C	BSC-05
RFCR8986	9000	18000	0.60/0.70	19/17	19/17	250/20	10	-40 to +85°C	BSC-05
RFCR8987	10000	20000	0.70/0.90	16/15	16/15	250/20	10	-40 to +85°C	BSC-05
RFCR8988	10000	15000	0.50/0.60	21/19	21/19	250/20	10	-40 to +85°C	BSC-05
RFCR8989	11000	18000	0.60/0.70	19/17	19/17	250/20	10	-40 to +85°C	BSC-05
RFCR8990	12400	18000	0.50/0.60	21/19	21/19	250/20	10	-40 to +85°C	BSC-05

Standard Part Number is SMA Female and Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation

Key Feature:

Broad Bandwidth
Low typical Insertion loss, High Typical Isolation
Wide Operation Temperature Range
High Power Handling
Industry-standard and Miniature package size.
Robust Construction for High Reliability performance
RoHS compliant
Magnetically Shielded

Function Diagram

Products available with alternative configuration such as reverse rotation direction.
S-Parameters to be measured by connecting Port 1 and Port 2 to VNA and Port 3 to Load with load return loss 30dB or higher.
Products available with alternative configuration such as Male type connector, high power termination and reverse rotation direction.
Custom Design Available Upon Request
S-parameters are available upon request
