RFCI SMD Circulators designed to meet the demands of commercial communication systems for applications in high performance linear power amplifiers. Feature a robust construction for reliability performance at low cost and high reverse power handling capability. These designs package ideally suited for high volume manufacturing.
Applications:
Communication system
5G Wireless infrastructure
S and C Band
SMD Circulators – 14.5mm [0.570″] Round Package Size

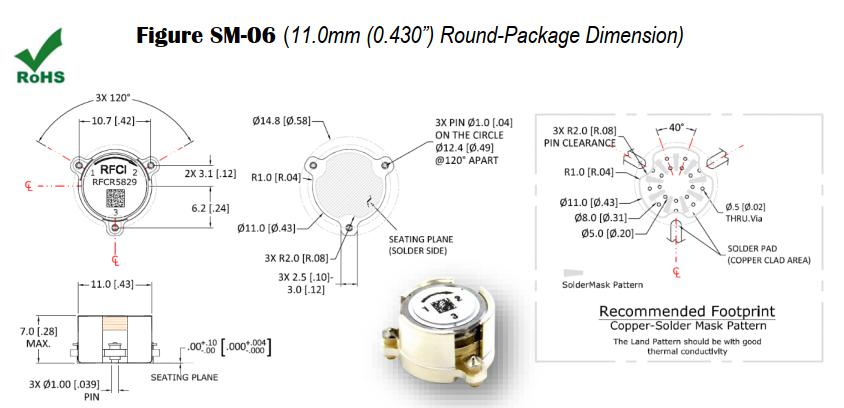

SMD Circulators -11mm [0.430″] Round Package Size

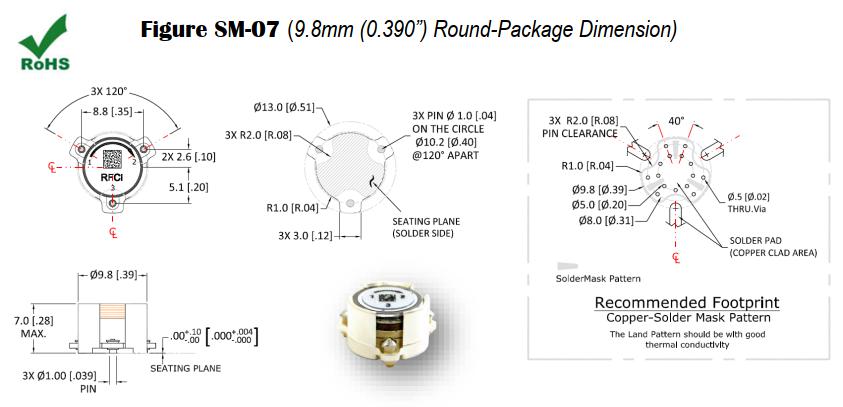

SMD Circulators – 9.80mm [0.390″] Round Package Size

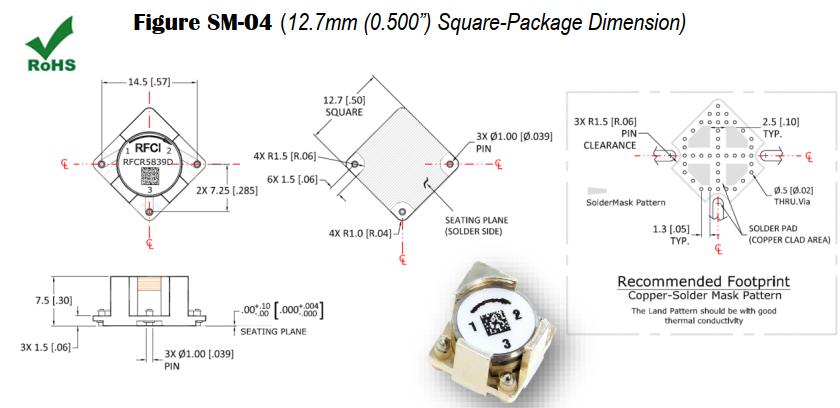

SMD Circulators – 12.7mm [0.500″] Square D Package Size
SMD Circulators – 9.0mm [0.350″] Square D Package Size
Standard Part Number is Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation
Key Feature:
- Broad selection of Frequency, Same size over wide range
- Industry standard and Miniature size
- Robust package Construction for High Reliability
- Excellent IMD, High Power Handling
- Low Insertion loss, High Isolation and Return loss
- Wide Operation Temperature Range
- RoHS compliant
- Magnetically Shielded
- Designed to function after exposure to the shock, vibration, thermal shock and moisture conditions
- Matrix Bar Code for part identify
Function Diagram
Standard Part Number is Clockwise (CW) Rotation
S-Parameters to be measured by connecting Port 1 and Port 2 to VNA and Port 3 to Load with load return loss 30dB or higher.
- Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction.
- Custom Design Available Upon Request
- S-parameters are available upon request.
- Evaluation Board (EVB) is available upon request
