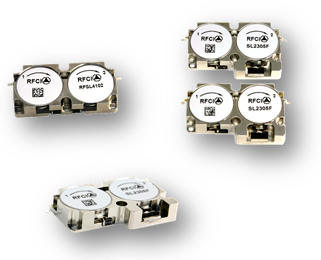

RFCI Drop-in Multiport “High Ratio” configuration Circulators designed for where additional isolation required, 2 or more junctions can be combined.
Products available with alternative configuration such as attenuators, high power termination and reverse rotation direction.
For our Part number listing or order, please contact: RFCI Sales: sales@rf-ci.com
Applications:
2 Ports F Configuration Brochure (pdf Download)
All of communication Systems
Key Feature:
- Available in most frequency range
- Wide Operation Temperature Range
- High Power Handling
- Robust Construction for High Reliability performance
- RoHS compliant
- Magnetically Shielded
Function Diagram
![](http://www.rf-ci.com/wp-content/uploads/2016/01/2_ports_diagram.jpg)
![Thick Image](http://www.rf-ci.com/wp-content/uploads/2015/12/thick.png)
Standard Part Number is Clockwise (CW) Rotation
- Products available with alternative configuration and reverse rotation direction.
- Special Tab is offset available.
- Custom Design Available Upon Request
- S-parameters are available upon request.
