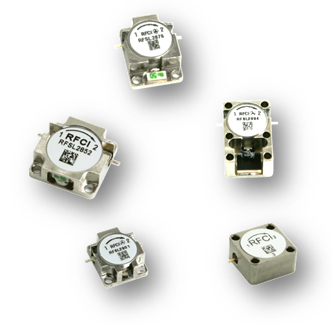

RFCI Drop-in Flange Mount Isolators utilize the latest technology in miniaturization to assure a fit into the most compact assemblies.
RFCI has developed a series of Drop-in Flange Mount Isolators for applications in high performance linear power amplifiers. These devices are specifically designed to be mounted with standard hardware within your chassis.
Their connection Tabs are also suitable for soldering to the mating circuit boards.
Applications:
Communication systems
Narrow S, C, X and Ku-Bands Radar

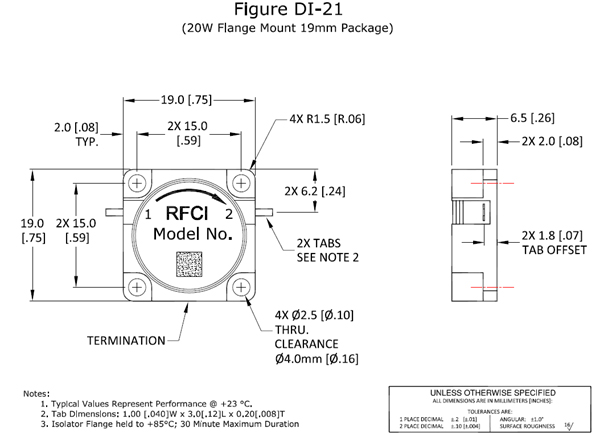

20W Flange Mount Drop-in Isolators (19mm C’ Bore Mounting Holes Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2852 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |  |
| RFSL2817 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2854 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2856 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2855 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2857 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2859 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2858 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2873 | 3400 | 4200 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | DI-21 | |
| RFSL2860 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
| RFSL2874 | 3500 | 4300 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | DI-21 | |
| RFSL2861 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 | |
100W-Flange Mount Drop-in Isolators (19mm Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2852-T100 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2817-T100 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2854-T100 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2856-T100 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2855-T100 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2857-T100 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2859-T100 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2858-T100 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2860-T100 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
| RFSL2861-T100 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 | |
20W Flange Mount Drop-in Isolators (19mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2852D | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2817D | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2854D | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2856D | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2855D | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2857D | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2859D | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2858D | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2860D | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
| RFSL2861D | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 | |
100W Flange Mount Drop-in Isolators (19mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2852D-T100 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2817D-T100 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2854D-T100 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2856D-T100 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2855D-T100 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2857D-T100 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2859D-T100 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2858D-T100 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2860D-T100 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
| RFSL2861D-T100 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 | |
2W Flange Mount Drop-in Isolators (12.7mm C’ Bore Mounting Holes Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2945-T2 | 3600 | 4200 | 0.35/0.50 | 20/19 | 20/19 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2921-T2 | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2886-T2 | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2875-T2 | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2876-T2 | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2887-T2 | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2877-T2 | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2878-T2 | 5000 | 6500 | 0.45/0.50 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2879-T2 | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2940-T2 | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2880-T2 | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2881-T2 | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2882-T2 | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2941-T2 | 7000 | 8000 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2883-T2 | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2942-T2 | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2884-T2 | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2885-T2 | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2892-T2 | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2901 | 8000 | 10500 | 0.35/0.50 | 22/18 | 22/18 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2946 | 9000 | 11000 | 0.45/0.50 | 22/19 | 22/19 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2943 | 10000 | 11700 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 | |
| RFSL2944 | 12000 | 15000 | 0.40/0.50 | 21/19 | 21/19 | 500/25 | 2 | -40 to +85°C | DI-28 | |

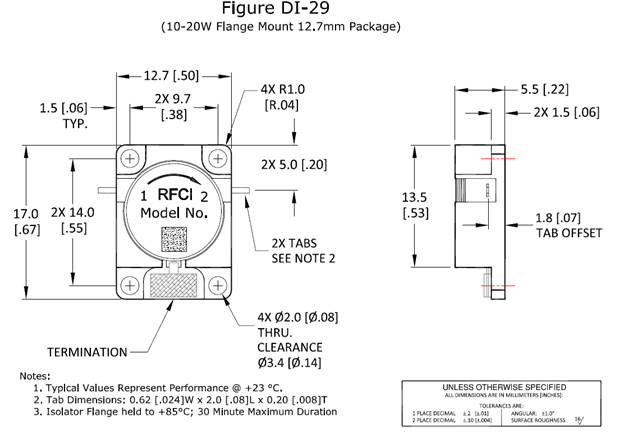

10W-20W Flange Mount Drop-in Isolators (12.7mm C’ Bore Mounting Holes Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2945 | 3600 | 4200 | 0.35/0.50 | 20/19 | 20/19 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2921 | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2886 | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2875 | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2876 | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2887 | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2877 | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2878 | 5000 | 6500 | 0.45/0.50 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2879 | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2940 | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2880 | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2881 | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2882 | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2941 | 7000 | 8000 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2883 | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2942 | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2884 | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2885 | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
| RFSL2892 | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 | |
5-10W Flange Mount Drop-in Isolators (12.7mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2945D | 3600 | 4200 | 0.40/0.50 | 20/19 | 20/19 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2921D | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2886D | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2875D | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2876D | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2887D | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2877D | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2878D | 5000 | 6500 | 0.45/0.50 | 20/17 | 20/17 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2879D | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2940D | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2880D | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2881D | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2882D | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2941D | 7000 | 8000 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2883D | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2942D | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2901D | 8000 | 10500 | 0.35/0.50 | 22/18 | 22/18 | 500/35 | 5 | -40 to +85°C | DI-27 | |
| RFSL2884D | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2885D | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2892D | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 | |
| RFSL2946D | 9000 | 1100 | 0.45/0.50 | 22/19 | 22/19 | 500/35 | 5 | -40 to +85°C | DI-27 | |
| RFSL2943D | 10000 | 11700 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 5 | -40 to +85°C | DI-27 | |
| RFSL2944D | 12000 | 15000 | 0.40/0.50 | 21/19 | 21/19 | 500/35 | 5 | -40 to +85°C | DI-27 | |
40W Flange Mount Drop-in Isolators (12.7mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | (ºC) | Figure | ||||
| RFSL2945D-T40 | 3600 | 4200 | 0.40/0.50 | 20/19 | 20/19 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2921D-T40 | 3600 | 3800 | 0.30/0.40 | 22/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2886D-T40 | 4000 | 4700 | 0.35/0.45 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2875D-T40 | 4200 | 4400 | 0.35/0.40 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2876D-T40 | 4400 | 5000 | 0.35/0.40 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2887D-T40 | 4700 | 5200 | 0.40/0.50 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2877D-T40 | 4900 | 6100 | 0.40/0.50 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2878D-T40 | 5000 | 6500 | 0.50/0.60 | 18/17 | 20/17 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2879D-T40 | 5400 | 5900 | 0.40/0.50 | 21/20 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2940D-T40 | 5800 | 7100 | 0.40/0.50 | 21/20 | 21/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2880D-T40 | 5800 | 6700 | 0.40/0.50 | 20/19 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
| RFSL2881D-T40 | 6400 | 7200 | 0.40/0.50 | 20/19 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 | |
Standard Part Number is Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation
Key Feature:
- Low Insertion loss, High Isolation
- Wide Operation Temperature Range
- Broad Selection of frequency and Bandwidth
- Industry-standard package size and Miniature size
- Robust Construction for High Reliability performance
- RoHS compliant
- Magnetically Shielded
Function Diagram
Standard Part Number is Clockwise (CW) Rotation
- Special Tab is offset available.
- Custom Design Available Upon Request
- S-parameters are available upon request.
