RFCI Drop-in Flange Mount Isolators utilize the latest technology in miniaturization to assure a fit into the most compact assemblies.
RFCI has developed a series of Drop-in Flange Mount Isolators for applications in high performance linear power amplifiers and are specifically designed for BST bands .
The connection Tabs are suitable for soldering to the mating circuit board.
Applications:
Wireless Base Station Bands, RFID and WiMax
5W Flange Mount Drop-in Isolators (12.7mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | Max. | Max. | (ºC) | Figure | ||

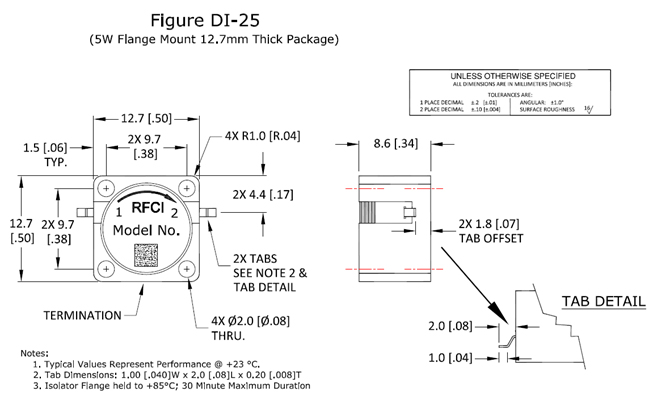

| RFSL2750D | 2110 | 2170 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 |  |
| RFSL2751D | 2130 | 2280 | 0.35/0.40 | 21/19 | 21/19 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2910D | 2300 | 2400 | 0.30/0.40 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2909D | 2320 | 2370 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2911D | 2365 | 2435 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2913D | 2400 | 2500 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2912D | 2470 | 2730 | 0.35/0.40 | 21/19 | 21/19 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2915D | 2550 | 2650 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
| RFSL2917D | 2620 | 2690 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 5 | -40 to +85°C | DI-25 | |
50W Flange Mount Drop-in Isolators (12.7mm Thick Package)
| Part Number | Frequency Range | Insertion Loss (dB) |
Isolation (dB) |
Return Loss (dB) |
Forward Power p CW (W) |
Rev Power CW (W) |
Operating Temperature | Package Outline | PDF Data | |
|---|---|---|---|---|---|---|---|---|---|---|
| Low | High | Room/OT | Room/OT | Room/OT | Max. | Max. | (ºC) | Figure | ||
| RFSL2750D-T50 | 2110 | 2170 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2751D-T50 | 2130 | 2280 | 0.35/0.40 | 21/19 | 21/19 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2910D-T50 | 2300 | 2400 | 0.30/0.40 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2909D-T50 | 2320 | 2370 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2911D-T50 | 2365 | 2435 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2913D-T50 | 2400 | 2500 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2912D-T50 | 2470 | 2730 | 0.35/0.40 | 21/19 | 21/19 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2915D-T50 | 2550 | 2650 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
| RFSL2917D-T50 | 2620 | 2690 | 0.25/0.35 | 22/20 | 22/20 | 500/50 | 50 | -40 to +85°C | DI-26 | |
Standard Part Number is Clockwise (CW) Rotation. Add letter “R” at the end to Part number for a Counter Clockwise (CCW) Rotation
Key Feature:
- Miniature size for BST bands
- Wide Operation Temperature Range
- High Power Handling
- Robust Construction for High Reliability performance
- RoHS compliant
- Magnetically Shielded
Function Diagram
Standard Part Number is Clockwise (CW) Rotation
- Products available with alternative configuration and reverse rotation direction.
- Special Tab is offset available.
- Custom Design Available Upon Request
- S-parameters are available upon request.
